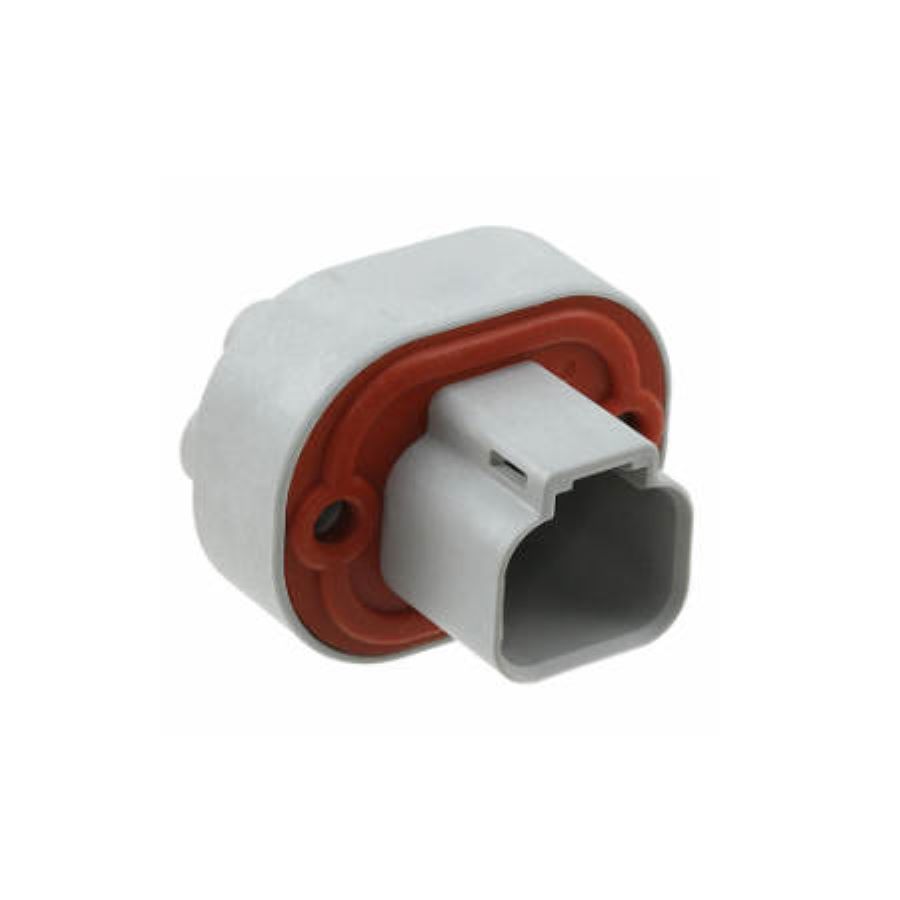

DT15-2P
Manufacturer:
TE Connectivity
Mfr.Part #:
DT15-2P
Datasheet:
Description:
Automotive Connectors Through Hole Number of Positions:2 Receptacle (Female) 16 AWG
| Parameter | Value |
|---|---|
| Length | 35.31 mm |
| Width | 27.432 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 30.353 mm |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| RoHS | Compliant |
| Contact Plating | Nickel |
| Pitch | 5.461 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Gender | Receptacle (Female) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Housing Color | Gray |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | No |
| Wire Gauge Range | 16 AWG |
Stock: 20
Distributors
pcbx
pcbxUnit Price$5.27577
Ext.Price$5.27577
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.27577 | $5.27577 |
| 10 | $4.48069 | $44.80690 |
| 25 | $4.19941 | $104.98525 |
| 50 | $3.99850 | $199.92500 |
| 100 | $3.62319 | $362.31900 |
| 300 | $3.48638 | $1045.91400 |
| 500 | $3.35474 | $1677.37000 |
| 1000 | $3.23506 | $3235.06000 |
